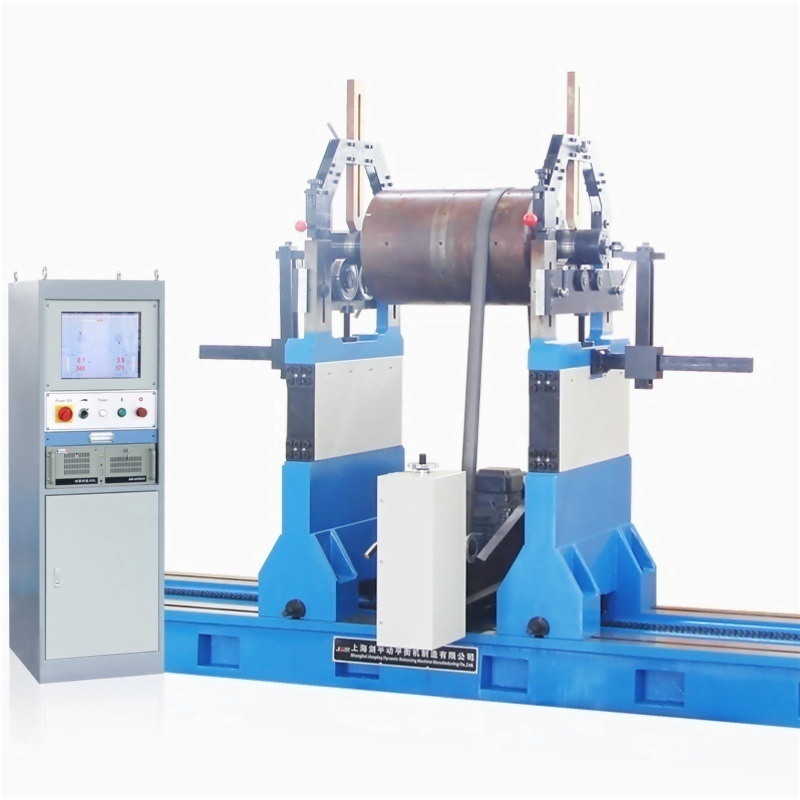

1.Specially designed brackets transmit mechanical force with low vibration damping 2.Durable and reliable sensor possesses good linearity 3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount 4.Belt-driving offers higher precision and easier operation 5.Advanced electrical measuring system and friendly man-machine interface 6.Modular design offers a wide range of application 7.PHQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc

Applicable to small workpieces

Technical data at a glance	PHQ-1.6/5	PHQ-1.6A/5A	PHQ-G5	PHA-5	PHQ-16A
Max Mass of Workpiece(kg)	1.6/5	1.6/5	5	5	16
Max Diameter of Workpiece (mm)	Φ300	Φ300	Φ300	400	Φ300
Distance Between Two Support Bearings (mm)	15~500	15~500	15~500	15~500	15~500
Journal Diameter Scope of Workpiece (mm)	Φ 3~40(120°)	Φ 3~40	Φ 3~40	Φ 3~40	Φ 3~40
Diameter Scope of Driving Belt (mm)	Φ20~85	Φ15~150	Φ20~85	Φ15~150	Φ15~150
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	~14701)	~14701)	~14701)	0~20001)	~14701)
Motor Power (kw)	0.2DC	0.2DC	0.2DC	0.2DC	0.2DC
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg



Applicable to medium workpieces



Technical data at a glance	PHQ-50	PHQ-160H	PHQ-160Z	PHQ-C160H	PHQ-300H	PHQ-500H
Max Mass of Workpiece(kg)	50	160	160	160	300	500
Max Diameter of Workpiece (mm)	Φ700	Φ1000	Φ300	400	Φ1220	Φ1500
Distance Between Two Support Bearings (mm)	80~700	130~1270	130~1270	130~1270	130~1270	130~1270
Journal Diameter Scope of Workpiece (mm)	Φ 8~753)	Φ 15~753)	Φ200-300	Φ200	Φ 15~753)	Φ 15~753)
Diameter Scope of Driving Belt (mm)	Φ18~200	Φmax400	Φmax300	Φmax400	Φmax500	Φmax600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	700,10501)	~1176	75001)	756,11761)	~1176	~1176
Motor Power (kw)	0.752)	1.52)	42)	1.52)	1.52)	2.22)
Length of Bed (mm)		1500			1500	1500
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg



Applicable to large workpieces



Technical data at a glance	PHQ-1000H	PHQ-2000H	PHQ-3000H	PHQ-5000
Max Mass of Workpiece(kg)	1000	2000	3000	5000
Max Diameter of Workpiece (mm)	Φ1600	Φ1800	Φ2100	Φ2400
Distance Between Two Support Bearings (mm)	160~1780	160~1780	160~2280	500~2200
Journal Diameter Scope of Workpiece (mm)	Φ 25~1204)	Φ25~1204)	Φ25~1204)	Φ40~380
Diameter Scope of Driving Belt (mm)	Φmax700	Φmax800	Φmax900	Φ50~1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	1330,19181)	684,9861)	921,13291)	795,18531)
Motor Power (kw)	42)	5.52)	7.52)	152)
Length of Bed (mm)	2000	2000	2500	2500
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.25g· mm/kg

Applicable to huge workpieces



Technical data at a glance	PHQ-10000H	PHQ-15000H	PHQ-20000H
Max Mass of Workpiece(kg)	10000	15000	20000
Max Diameter of Workpiece (mm)	Φ2400	Φ2800	Φ2800
Distance Between Two Support Bearings (mm)	750~4600	750~5600	750~5600
Journal Diameter Scope of Workpiece (mm)	Φ 60~400	Φ60~400	Φ60~400
Diameter Scope of Driving Belt (mm)	Φ50~1000	Φ50~1300	Φ50~1300
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	795,18531)	795,18531)	795,18531)
Motor Power (kw)	18.52)	222)	302)
Length of Bed (mm)	2500	2500	2500
Min Achievable Residual Unbalance Amount (emar)	≤0.5g· mm/kg	≤0.5g· mm/kg	≤0.5g· mm/kg

1) Stepless speed regulation
2) Frequency conversion
