Vacuum Cleaner Impeller Vertical Pneumatic Scissors Automatic Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

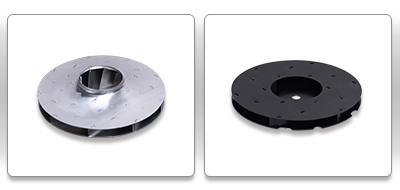

The model A1LJ1 is specially developed for the dynamic unbalance test of the vacuum cleaner impeller, suitable for the unbalance detection of vacuum cleaner impeller.


Features

1.The workpiece material is aluminum, and the distance between the upper and lower blades should be greater than 8 mm.

2.Fixture hole 8mm (can be customized).

3.Manual loading and unloading.


Vertical Pneumatic Scissors Automatic Balancing Machines

Technical data at a glance

A1LJ1
Max Weight of Workpiece (kg) 0.5

Max Diameter of Workpiece (mm)

70-140
Distance between the Upper and Lower Blades (mm)

>10

Diameter of Fixture hole (mm)(Customizable)

Φ 8

Workpiece Material

Aluminum

Punching Shear Diameter (mm)

8

Max. Thickness of Punching Shear Material(mm) 1

Balancing Speed(r/min )

~1500(Stepless Speed Regulation)

Min. Achievable Residual Unbalance/Each Plane (e mar )

≤0.1gmm/kg

Motor Power(kW) Panasonic Servo 0.1
Power Supply AC220V,single-phase,50HZ
HMI 12inch; Weinview
System JP-800
Once Reduction Ratio 95%
