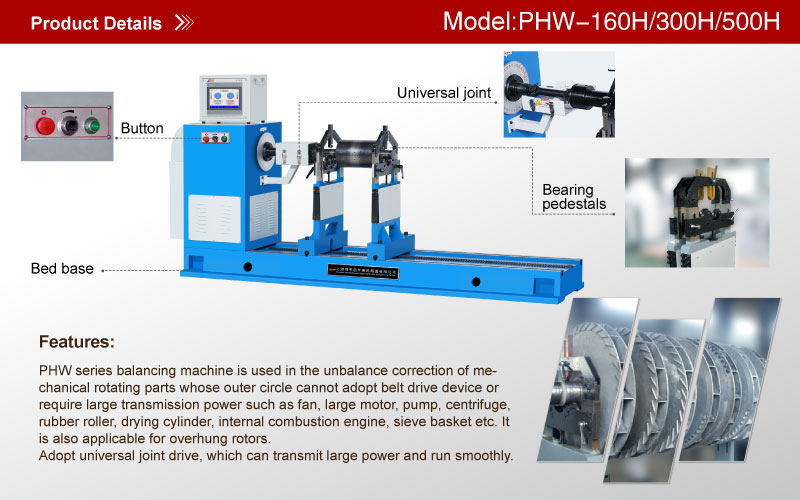

Small-sized Universal Joint Drive Balancing Machine

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

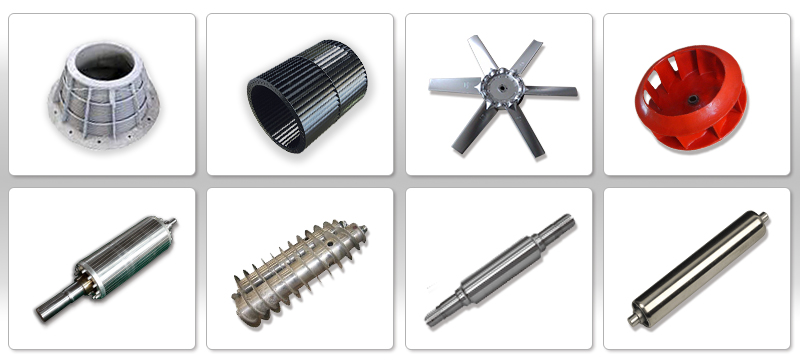

It is used for the unbalance correction of rotating workpieces such as small-sized motor rotors, blowers, centrifugal impellers, drying cylinders, and rollers.


Features

This machine adopts Jianping measuring system, dynamic and static balancing are both available, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized,unbalance amount and angle display units can be customized to achieve real-time unit conversion to meet different customer needs.

Adopt universal coupling or gear box transmission, can obtain a variety of balancing speed or stepless speed regulation.


Applicable to Small workpieces

Technical data at a glancePHW-160HPHW-300HPHW-500H
Mass Scope of Workpiece(kg)160300500
Max Diameter of Workpiece(mm)Φ1000Φ1200Φ1500
Distance Between Two Support Bearings(mm)Min 60Min 60Min 60
Journal Diameter Scope of Workpiece(mm)Φ15~752)Φ15~752)Φ15~752)
Max Distance between Driving Flange and Right Bearing Support (mm)150015001500
Rotational Speed of the Main Axis(r/min)600,10954)600,10954)600,10954)
Motor Power (kw)31)31)41)
Torque of Universal Joint Shaft(N·m)606060
Length of Bed (mm)250025002500
Min Achievable Residual Unbalance Amount(emar)≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg
1)Frequency conversion
2)Can add to 75-180
3)Can add to 120~240
4)
Stepless speed regulation
