Hard Bearing Self Driven Balancing Machine

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

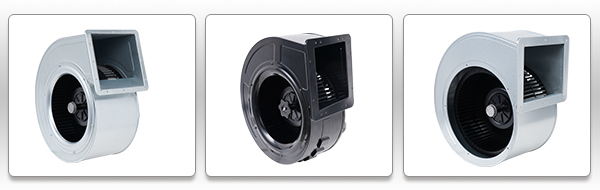

It is suitable for the overall unbalance detection of kitchen exhaust fan rotor.


Features

1.Adopt hard-bearing overall bearing pedestals, high precision.

2.Special pneumatic fixture is used for overall balancing.

3.The equipment has protective functions and safety door locks.

4.Left and right push-pull protective cover safety doors, safe and reliable operation

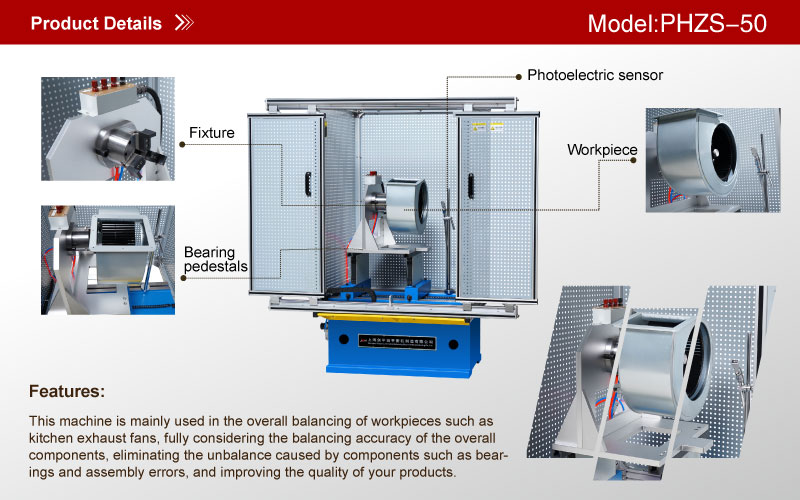

Hard Bearing Self Drive Balancing Machine
Technical data at a glancePHZS-50PHZS-160
Max Mass of Workpiece (kg)50160
Max Diameter of Workpiece(mm)Φ550Φ800
Distance Between Two Support Bearings(mm)40-70040-1070
PowerAC220V, Single-Phase, 50/60HZ   AC220V, Single-Phase, 50/60HZ
