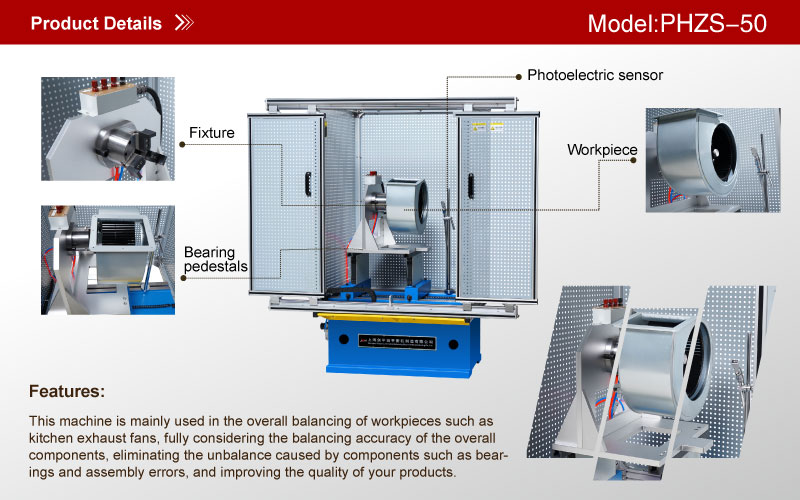

Fan Assembly Dynamic Balancer
Describe Parameter Photo Video Download Get a Quote
Application
It is suitable for the overall unbalance detection of fan rotors.
Features
1.Adopt hard-bearing overall bearing pedestals, high precision.
2.Special pneumatic fixture is used for overall balancing.
3.The equipment has protective functions and safety door locks.
4.Left and right push-pull protective cover safety doors, safe and reliable operation
| Technical data at a glance | PHZS-50 | PHZS-160 |
| Max Mass of Workpiece (kg) | 50 | 160 |
| Max Diameter of Workpiece(mm) | Φ550 | Φ800 |
| Distance Between Two Support Bearings(mm) | 40-700 | 40-1070 |
| Power | AC220V, Single-Phase, 50/60HZ | AC220V, Single-Phase, 50/60HZ |
| Min Achievable Residual Unbalance Amount (emar) | 1g· mm/kg | 1g· mm/kg |
