Micro-sized Belt Drive Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

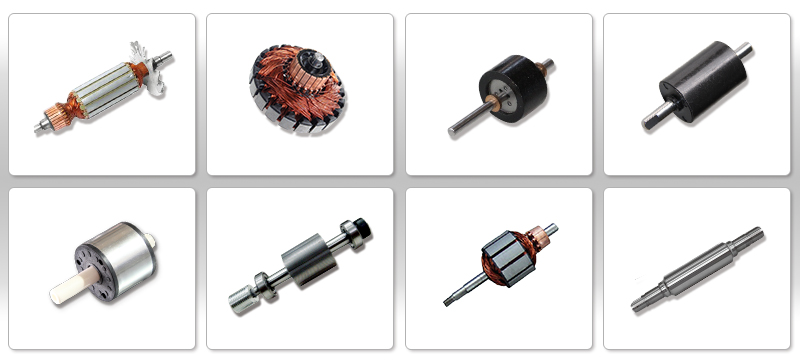

Used in the dynamic unbalance detection of various small power tool rotors, permanent magnet motor rotors, spinning cups, couplings, generator rotors, combing rollers, shafts, turbocharger rotors and other rotating workpieces.


Features

This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.

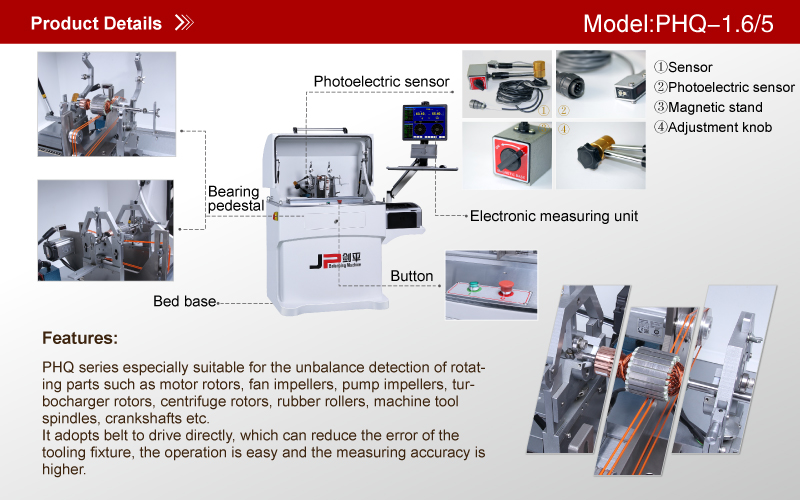

Applicable to small workpieces

Technical data at a glancePHQ-1.6/5PHQ-1.6A/5APHQ-G5PHA-5PHQ-16A
Max Mass of Workpiece(kg)1.6/51.6/55516
Max Diameter of Workpiece (mm)Φ300Φ300Φ300400Φ300
Distance Between Two Support Bearings (mm)15~50015~50015~50015~50015~500
Journal Diameter Scope of Workpiece (mm)Φ 3~40(120°)Φ 3~40Φ 3~40Φ 3~40Φ 3~40
Diameter Scope of Driving Belt (mm)Φ20~85Φ15~150Φ20~85Φ15~150Φ15~150
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) ~14701)~14701)~14701)0~20001)~14701)
Motor Power (kw)0.2DC0.2DC0.2DC0.2DC0.2DC
Min Achievable Residual Unbalance Amount (emar)≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg


1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240
5) Can add to 75-140
