Two-Plane Axial Flow Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application

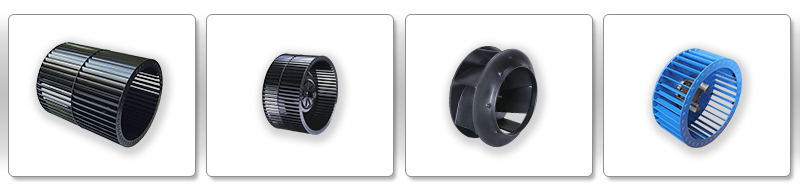

This machine is mainly used for the unbalance correction of various types of axial flow fan blades and centrifugal fan blades.
Features
1.The brackets designed by Jianping improves mechanical sensitivity effectively
2.The sensor has good linearity, durable and reliable
5.Jianping electronic measurement system, friendly HMI, easy to operate

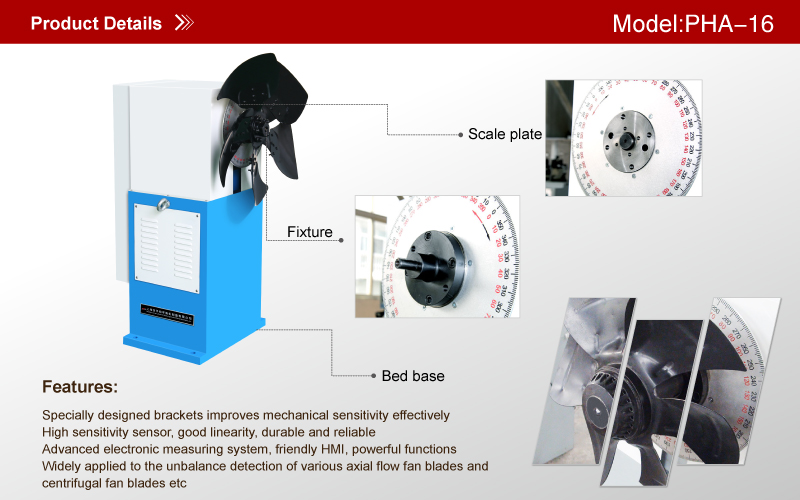

PHA-5/16 Two-Plane Axial Flow Fan Balancing Machine
| Technical data at a glance | PHA-5 | PHA-16 |
| Max Mass of Workpiece (kg) | 5 | 16 |
| Max Diameter of Workpiece (mm) | 400 | 1200 |
| Length of workpiece(mm) | 200 | |
| Spindle speed(r/min) | ~1470(Stepless speed regulation) | ~900(Stepless speed regulation) |
| Motor power(kw) | 0.2DC | 1.5(frequency conversion) |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.5g· mm/kg | ≤2g· mm/kg |
| Correction mode | Single/Double Plane | Single/Double Plane |
| Dimension | 700*400*850 |
PH2LD-5 Two Station Axial Fan Vertical Balancing Machine
| Technical data at a glance | PH2LD-5 | PH2LD-5Q | PH2LD-5D | PH2LD-5DQ |
| Max Mass of Workpiece (kg) | 5 | 5 | 5 | 5 |
| Max Diameter of Workpiece (mm) | 500 | 500 | 500 | 500 |
| Spindle speed(r/min) | ~1200(Stepless speed regulation) | ~1200(Stepless speed regulation) | ~1200(Stepless speed regulation) | ~1200(Stepless speed regulation) |
| Motor power(kw) | 0.37frequency conversion | 0.37frequency conversion | 0.75Servo motor | 0.75Servo motor |
| Min Achievable Residual Unbalance Amount (emar) | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg |
| Unbalance Reduction Rate | ≥95% | ≥95% | ≥95% | ≥95% |
| Power | Three Phase 380V 50HZ | Three Phase 380V 50HZ | Three Phase 380V 50HZ | Three Phase 380V 50HZ |
PHZQ-16 Centrifugal Fan Balancing Machine
| Technical data at a glance | PHZQ-16 |
| Max Mass of Workpiece (kg) | 16 |
| Max Diameter of Workpiece (mm) | 400 |
| Spindle speed(r/min) | 0~2000(Stepless speed regulation) |
| Motor power(kw) | 0.2 DC Brushless |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg |
