EV Motor Manual Balancer
Describe Parameter Photo Video Download Get a Quote
Application

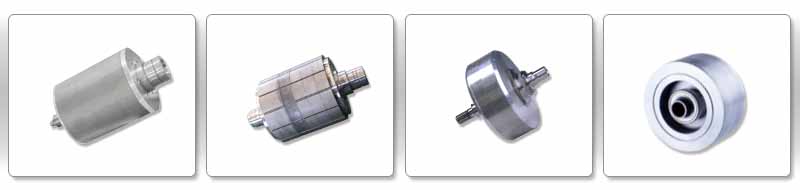

This machine is suitable for the unbalance correction of rotating workpieces such as small and medium-sized EV motor rotors, environmentally friendly motor rotors, rollers and shafts etc.
Features
1.Jianping electronic measurement system, friendly HMI, easy to operate
2.Professionally designed brackets, which can effectively transmit mechanical force, firm and reliable, with low vibration damping and good rigidity
3.Calibration measurement principle, high precision, allowing high initial unbalance
4.High sensitivity sensor, good linearity, durable and reliable
5.Belt drive structure, more convenient to use
6.Integrated weight removal unit
| Technical data at a glance | PHQ-50-XX |
| Max Mass of Workpiece(kg) | 50 |
| Max Diameter of Workpiece (mm) | 200 |
| Distance Between Two Support Bearings (mm) | 150~680 |
| Journal Diameter Scope of Workpiece (mm) | Φ 15~75 |
| Diameter Scope of Driving Belt (mm) | Φ 100~200 |
| Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 700,10501) |
| Motor Power (kw) | 0.752) |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg |
1) Stepless speed regulation
2) Frequency conversion
