Automobile Fan Heater Assembly Balancer
Describe Parameter Photo Video Download Get a Quote
Application

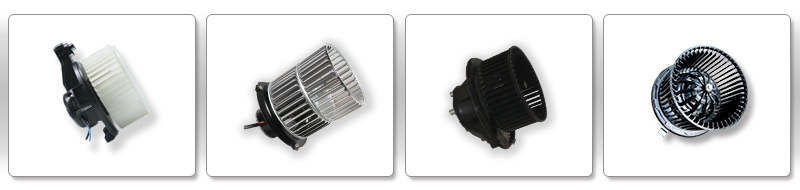

It is suitable for unbalance correction of automobile fan heater and blower products etc.
Features
1.JP-800 electronic measurement system, 10-inch touch screen
2.Safety door and safety light curtain ensures safety
3.Sound and light alarm, intuitive and eye-catching
4.Specially designed soft-bearing measuring brackets
5.Pneumatic fixture, easy to install the workpiece

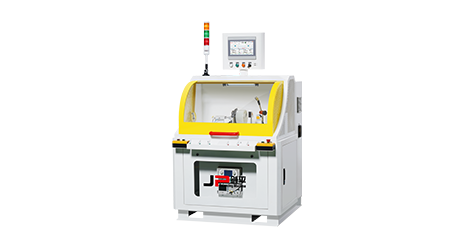

PRZS-5H Automotive Heater Balancing Machine
| Technical data at a glance | PRZS-5H |
| Max Mass of Workpiece(kg) | 5 |
| Maximum Diameter of Workpiece(mm) | 300 |
| Balancing Speed(r/min) | Adjustable |
| Min Achievable Residual Unbalance Amount (emar) | 2gmm/kg |
| Unbalance Reduction Rate(%) | ≥90 |
| Working Pressure | 0.45-0.6Mpa |
| Working Voltage | AC220V |
| Security | Automatic door |
| Software Interface | Kunluntongtai 10-inch touch screen |
| Dimensions | L1350*H2040*W750 |
PR2ZS-5 Two Station Automotive Heater Balancing Machine
| Technical data at a glance | PR2ZS-5 |
| Max Mass of Workpiece(kg) | 5 |
| Maximum Diameter of Workpiece(mm) | 300 |
| Balancing Speed(r/min) | 1500-5000 Adjustable |
| Min Achievable Residual Unbalance Amount (emar) | 2g mm/kg |
| Unbalance Reduction Rate(%) | ≥90 |
| Working Pressure | 0.45-0.6Mpa |
| Working Voltage | AC220V |
| Balance Test Time (s) | 8-12 |
| Balance Mode | Artificial Weighting |
| Balancer Type | Soft Bearing Support |
| Human-Machine Exchange | 2 10-inch touch screens |
| System | JP-800 |
| Total Power | 3kw |
| Air Consumption | 3L/Min |
