EV Motor Automatic Balancing Machines

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

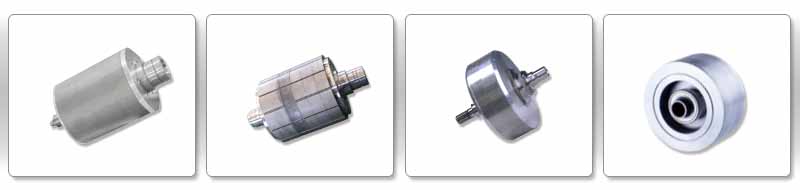

It is applied to the unbalance correction of the automobile EV motor rotors.


Features

1.Professionally designed brackets, which can effectively transmit mechanical force, firm and reliable, with low vibration damping and good rigidity

2.High sensitivity sensor, good linearity, durable and reliable

3.Calibration measurement principle, high precision, allowing high initial unbalance

4.Belt drive structure, high measurement accuracy, more convenient to use

5.Advanced electronic measurement system, friendly HMI, easy to operate

6.Modular design, wide application range

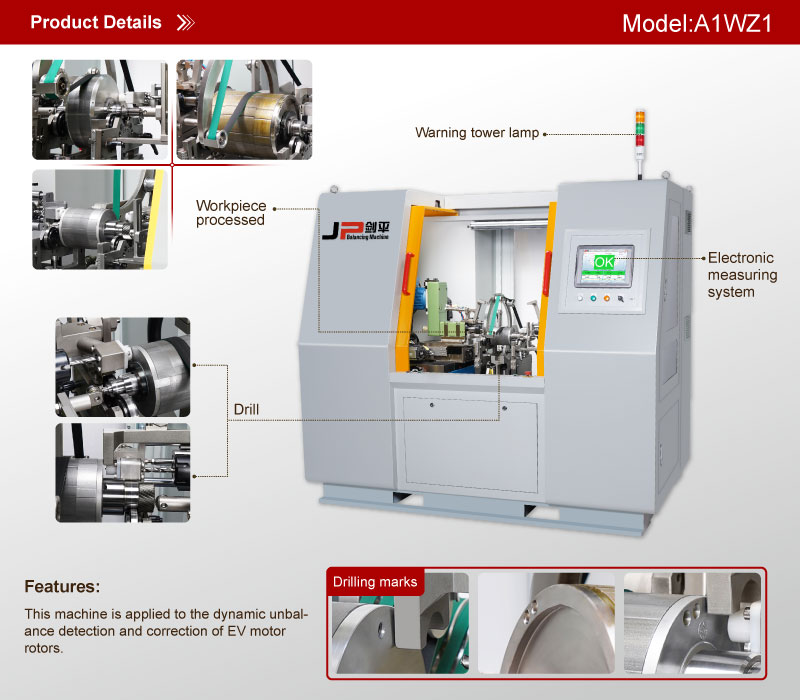

EV Motor Automatic Balancing Machines
Technical data at a glance
A1WZ1
Weight:5-50kg
Measuring System:Shanghai Jianping
Bearing Shaft Diameter:15-75mm
Driven Measuring Motor:1.5kw Panasonic Servo Motor
Lamination Thickness:80-450mm
Drilling Engaging Motor:0.75kw Panasonic Servo Motor
Lamination Diameter:80-300mm
Drilling Spindle Motor:0.75kw
Deweight Diameter:60-280mm Cylinder:SMC
Drilling Diameter:max 16mm Drilling Track:ShangYin
Distance between Drilling Cutter and plane:10-150mm
Main Driven Motor:Taiwan Hankun
Min Residual Unbalance Rate:<0.5g.mm/kg
Vacuum Cleaner:Suzhou Deico
Unbalance Reduction Rate by One Time >95%
Special rotor need to be confirmed with engineer
Processing period:150s (it will change accoring to weight.material.dimension)
