EV Motor Automatic Balancing Machine “Tailored Case”

EV Motor Automatic Balancing Machine “Tailored Case”

Founded in 2004, Shanghai Jianping has been focusing on the research and development, production and sales of balancing technology and related products since its establishment. After years of R&D innovation and technology accumulation, our company has mastered the core technology of balancing field and has provided comprehensive solutions. At present, our products cover household appliances, automobile industry, new energy, aviation, shipping, high-speed rail, military and other application fields. Under the joint efforts of the company team, we have signed the purchase contract of EV rotor automatic balancing machine with Nidec, the EV rotor automatic balancing machine ordered by this company is independently researched, developed and produced by Shanghai Jianping; Recently, this tailored project has been completed successfully.

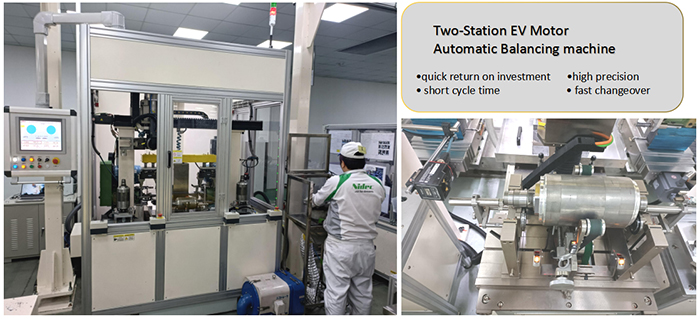

This tailored Jianping automatic balancing machine is a electromechanical integration equipment which is used to measure the dynamic unbalance of the EV motor rotor. It adopts the touch screen as the human machine interface, to perform the parameter setting and machine operation, so that the operation becomes very simple. Using PLC system control, the setting of rotor parameters, input of rotor varieties, processing of unbalance data, fixture changeover of measuring unit, automatic drilling and other work can be easily completed. It also has the function of data recording.

Application

It is mainly used in unbalance measurement and correction of EV rotors and those rotors which require end face weight removal. It can integrate with rotor production line to realize automatic production.

Product features

1.Balancing and weight removal is one-time completion, one machine just requires one person.

2.Fast production cycle time, higher once reduction ratio.

3.Convenient for changeover, just replace the product fixture and adjust the sensor position.

4.Touch screen HMI, easy operation.

5.Rigid structure design, high service life.

6.Automatically drill, remove weight and correct the workpiece.

7.Measuring, drilling and weight removal data can be exported, convenient for user to do data summary statistics.

8.Can integrate with assembly line to provide fully automatic production.

9.Stable performance, extremely low failure rate. In case of failure, our professional personnel can carry out remote control and repair.

By using its strong software development ability and mechanical structure design ability, Shanghai Jianping R&D team has solved the precision speed sensor design, precise positioning, mathematical model establishment, automatic tool setting and tool feeding, dynamic density compensation and other problems. It has a full set of system intellectual property rights and can modify, optimize and improve the corresponding solutions to the balancing machine at any time. Welcome to contact us to know more about balancing machine knowledge and the latest technology
