Your current location：> >> PRODUCTS >> Pump Industry >> Pump Impeller Balancer

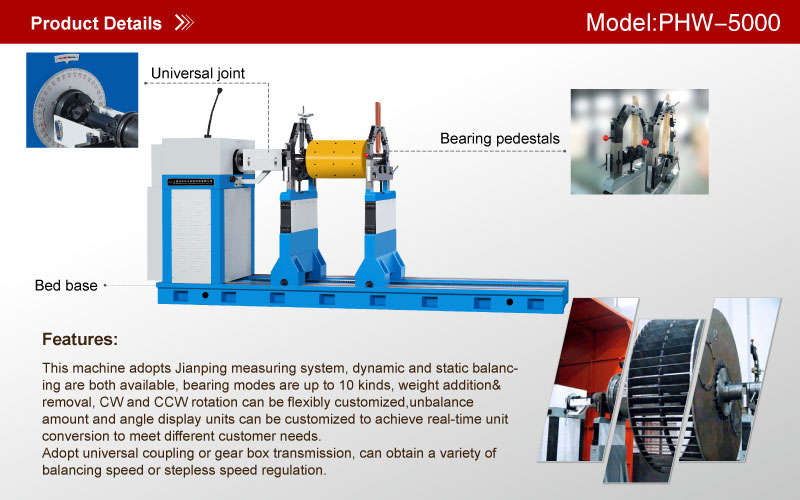

Pump impeller Universal Joint Drive Balancer
Describe Parameter Photo Video Download Get a Quote
Application

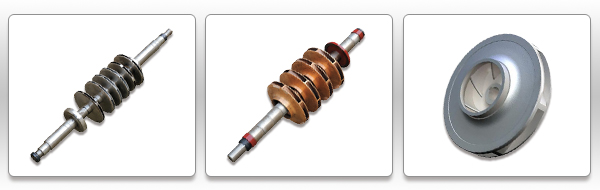

It is applied to the unbalance correction of rotating workpieces such as multistage pump impellers, cascade pump impellers, medium and large-sized pump impellers etc.
Features
This machine adopts Jianping measuring system, dynamic and static balancing are both available, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized,unbalance amount and angle display units can be customized to achieve real-time unit conversion to meet different customer needs.
Adopt universal coupling or gear box transmission, can obtain a variety of balancing speed or stepless speed regulation.
Applicable to Small workpieces
| Technical data at a glance | PHW-160H | PHW-300H | PHW-500H |
| Mass Scope of Workpiece(kg) | 160 | 300 | 500 |
| Max Diameter of Workpiece(mm) | Φ1000 | Φ1200 | Φ1500 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 |
| Journal Diameter Scope of Workpiece(mm) | Φ15~752) | Φ15~752) | Φ15~752) |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 | 1500 | 1500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 600,10954) | 600,10954) |
| Motor Power (kw) | 31) | 31) | 41) |
| Torque of Universal Joint Shaft(N·m) | 60 | 60 | 60 |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount(emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
Applicable to medium workpieces
| Technical data at a glance | PHW-1000H | PHW-2000H | PHW-3000H | PHW-5000 |
| Mass Scope of Workpiece(kg) | 1000 | 2000 | 3000 | 5000 |
| Max Diameter of Workpiece(mm) | Φ1600 | Φ1800 | Φ2100 | Φ2400 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 | Min 320 |
| Journal Diameter Scope of Workpiece(mm) | Φ25~1203) | Φ25~1203) | Φ25~1203) | Φ40~380 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1600 | 1900 | 1900 | 2500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 485,8184) | 133,255,396. 634,9704) | 133,255,396, 634,9704) |
| Motor Power (kw) | 41) | 7.51) | 7.51) | 151) |
| Torque of Universal Joint Shaft(N·m) | 250 | 300 | 700 | 1250 |
| Length of Bed (mm) | 2500 | 3000 | 3000 | 4000 |
| Min Achievable Residual Unbalance Amount(emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
1)Frequency conversion
2)Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation
