Tool Holder Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application

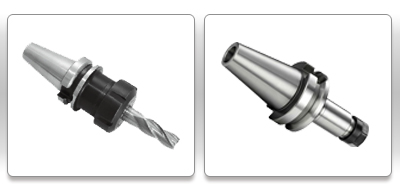

This machine is mainly used for the unbalance detection of cutters tool and tool holder.
Features
1. Pneumatic spindle designed by Jianping is used to realize the pneumatic clamping and release of the fixture
2. Convenient loading and unloading, low labor intensity
3. Driven by variable frequency motor, it can achieve stepless speed regulation, smooth acceleration and deceleration
4. Simple, reliable and safe operation

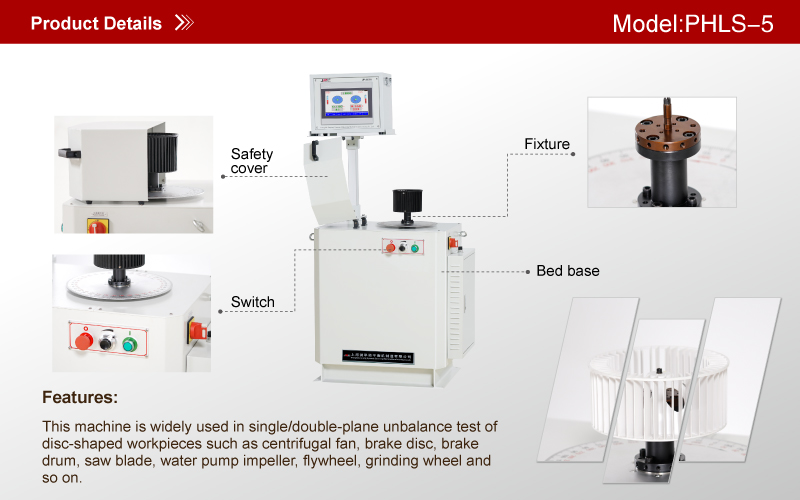

Dual-Plane Vertical Balancing Machines
| Technical data at a glance | PHLS-5Q | PHLS-35Q | PHLS-150Q | PHLS-350Q |
| Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 |
| Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 |
| Height of workpiece(mm) | 130 | 220 | 300 | 300 |
| Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) |
| Motor power(kw) | 0.37 | 1.53) | 33) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
1) With hood
2) Without hood
3) Frequency conversion
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
