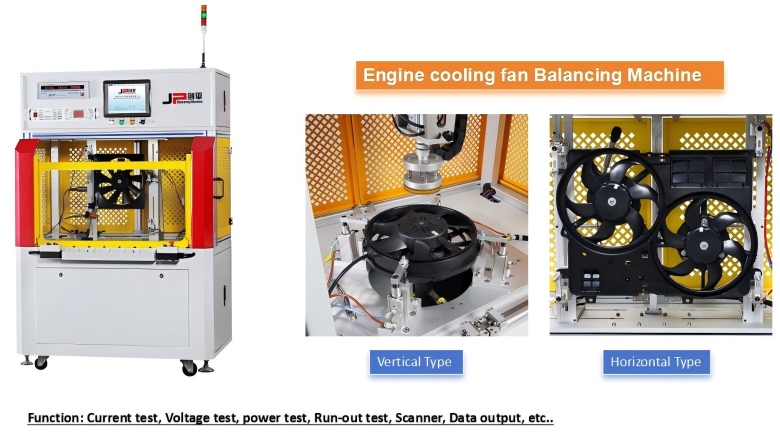

Motor Fan Balancing Machines-ENGINE COOLING FAN BALANCING MACHINE
Motor Fan Balancing Machines-ENGINE COOLING FAN BALANCING MACHINE
1. Product Description
The car engine cooling fan balancing machine is applicable for the balance measurement of enginge cooling fan and radiator cooling fan assembly.
2. Main Features:
2.1 Safety protection door
2.2 12-inch man-machine IPC
2.3 Self-developd measuring software
2.4 Pneumatic tooling with quick clamping
2.5 Soft bearing structure ensures high precision measurement results
2.6 The equipment has fault-diagnosis function, giving fault alert and information when the equipment fails.
2.7 The equipment has strong compatibility, simple change-over for different products. Staff can operate the machine after simple training.
2.8 There is no need to draw marks or paste reflective paper on the rotor for speed measurement.
2.9 Automatic speed control without human intervention.
2.10 Fully independent intellectual property rights. Customized solutions can be developed as per customer's requirement.
| Serial No. | Item Details | Parameter Range |
| 1 | Workpiece mass range (kg) | 5kg |
| 2 | Maximum dimension of workpiece (mm) | 900X700mm |
| 3 | Balance speed (r/min) | 7000 |
| 4 | Repeated Measurement Accuracy | 6g.mm |
| 5 | Unbalance Reduction Ratio | ≥90% |
| 6 | Balance test time (s) | 20 |
| 7 | Working air pressure (MPa) | 0.4-0.6MPa |
| 8 | Working voltage (V) | AC:220V External |
| 9 | Balance method | Manual add clips |
| 10 | Balancing measurement structure | Soft supporting measurement swing frame |
| 11 | Total machine power | 3KW |
| 12 | Average gas consumption | ≤3L/min |
